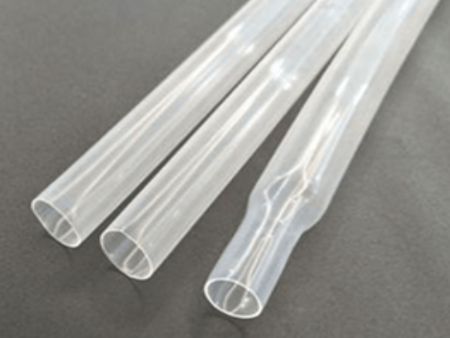

High Temperature Heat Shrinkable Tube
FEP heat shrinkable tubing is made of FEP with excellent 200℃ high-temperature performance, chemical resistance, high insulation and excellent mechanical properties. FEP has excellent abrasion resistance and excellent clarity. Designed to provide insulation and mechanical protection in severe chemical and thermal environments. Widely used in electronic, aerospace, military and communication fields.
Powered by Froala Editor
FEATURES
- Shrink ratio 1.25:1
- Excellent flame retardance
- Superior chemical and abrasion resistance
- Ideal insulation property
- High transparency
- Coefficient of friction: 0.2~0.3
- High temperature resistant to 200℃
Powered by Froala Editor
Powered by Froala Editor
Powered by Froala Editor
Powered by Froala Editor
TYPICAL APPLICATIONS
Material : FEP
Continuous operating temperature : -65˚C~200˚C
Minimum shrink temperature : 60℃
Full recovery temperature : Above 120℃
Temperatures for product preservation : Below 50℃
Standard color : Clear
Powered by Froala Editor
Powered by Froala Editor
TECHNICAL DATA
Property | Requirement | Test method | Test result |
Longitudinal change | -5%~5% | ASTM D2671 | Pass |
Tensile strength | ≥13.8MPa | ASTM D2671 | ≥20MPa |
Elongation at break | ≥150% | ASTM D2671 | ≥250% |
Dielectric voltage withstand | AC2500V/60S No breakdown | ASTM D2671 | No breakdown |
Volume resistivity | ≥1015Ω‧cm | ASTM D2671 | ≥1016Ω‧cm |
Copper Corrosion | No corrosion | ASTM D2671 (158˚C/168 hrs) | No corrosion |
Flammability | VW-1 | UL 224 | Pass |
Powered by Froala Editor
Powered by Froala Editor
Powered by Froala Editor
Powered by Froala Editor
Powered by Froala Editor
DIMENSIONS
Part Number | As supplied (mm) | After shrinkage (mm) | Standard Length (Meter) | ||
ID (D) | W.T(W) (Nominal size) | ID (d) max. | W.T (w) (Nominal size) | ||
Thick Type | |||||
FEP-0047 | 4.7±1 | 0.20 | 3.8 | 0.25 | 1 |
FEP-0055 | 5.5±1 | 0.20 | 4.5 | 0.25 | 1 |
FEP-0070 | 7±1.5 | 0.20 | 5.6 | 0.25 | 1 |
FEP-0090 | 9±1.5 | 0.20 | 7.5 | 0.26 | 1 |
FEP-0115 | 11.5±1.5 | 0.25 | 9.3 | 0.30 | 1 |
FEP-0145 | 14.5±1.5 | 0.30 | 11.7 | 0.37 | 1 |
FEP-0190 | 19±2 | 0.30 | 15.3 | 0.37 | 1 |
FEP-0240 | 24±2 | 0.40 | 19.3 | 0.50 | 1 |
FEP-0280 | 28±2 | 0.40 | 22.5 | 0.50 | 1 |
FEP-0350 | 35±2 | 0.40 | 28.1 | 0.50 | 1 |
FEP-0440 | 44±2.5 | 0.40 | 36.1 | 0.50 | 1 |
FEP-0540 | 54±2.5 | 0.40 | 43.3 | 0.50 | 1 |
FEP-0660 | 66±3 | 0.40 | 52.9 | 0.50 | 1 |
FEP-0780 | 78±3 | 0.40 | 62.5 | 0.50 | 1 |
FEP-0900 | 90±4 | 0.40 | 72.1 | 0.50 | 1 |
FEP-1030 | 103±4 | 0.40 | 82.5 | 0.50 | 1 |
Thin Type | |||||
FEPTW-0070 | 7±1.5 | 0.15 | 5.6 | 0.20 | 1 |
FEPTW-0090 | 9±1.5 | 0.15 | 7.5 | 0.20 | 1 |
FEPTW-0115 | 11.5±1.5 | 0.20 | 9.3 | 0.26 | 1 |
FEPTW-0145 | 14.5±1.5 | 0.20 | 11.7 | 0.26 | 1 |
FEPTW-0165 | 16.5±1.5 | 0.20 | 13.2 | 0.26 | 1 |
FEPTW-0190 | 19±2 | 0.20 | 15.3 | 0.26 | 1 |
FEPTW-0240 | 24±2 | 0.20 | 19.3 | 0.26 | 1 |
FEPTW-0280 | 28±2 | 0.20 | 22.5 | 0.26 | 1 |
FEPTW-0350 | 35±2 | 0.20 | 28.1 | 0.26 | 1 |
FEPTW-0440 | 44±2.5 | 0.20 | 36.1 | 0.30 | 1 |
FEPTW-0540 | 54±2.5 | 0.20 | 43.3 | 0.30 | 1 |
FEPTW-0660 | 66±3 | 0.30 | 52.9 | 0.40 | 1 |
FEPTW-0780 | 78±3 | 0.30 | 62.5 | 0.40 | 1 |
